Function

Technical specifications

  • Weight: ca. 4,6 kg
  • Payload: 30 kg
  • Loading area: (width x length) 47 cm x 42 cm
  • Width trailer (unfolded): 58 cm

Technical specifications

  • Weight: ca. 4,6 kg
  • Payload: 30 kg
  • Loading area: (width x length) 47 cm x 42 cm
  • Width trailer (unfolded): 58 cm

Pullit! narrow and Pullit! wide

Pullit! wide - the wider middle frame for transport on the existing luggage rack and the narrow version Pullit! narrow for bikes without luggage rack.

The following applies to both versions: the loading area and capacity as well as the wheelbase (unfolded) are identical.

The carrier version of the Pullit! also fits on the seat post holder, but not the other way around (narrow version does not fit on a luggage rack).

Pullit! narrow and Pullit! wide

Pullit! wide - the wider middle frame for transport on the existing luggage rack and the narrow version Pullit! narrow for bikes without luggage rack.

The following applies to both versions: the loading area and capacity as well as the wheelbase (unfolded) are identical.

The carrier version of the Pullit! also fits on the seat post holder, but not the other way around (narrow version does not fit on a luggage rack).

Seat post holder

The seat post holder takes over the transport of the Pullit! on bicycles without a luggage rack.
It is easily and securely attached to the seat post with two clamps.

Fix

Adjustable

In the Fix version, the incline of the holder can be adjusted and moved along the seat post.

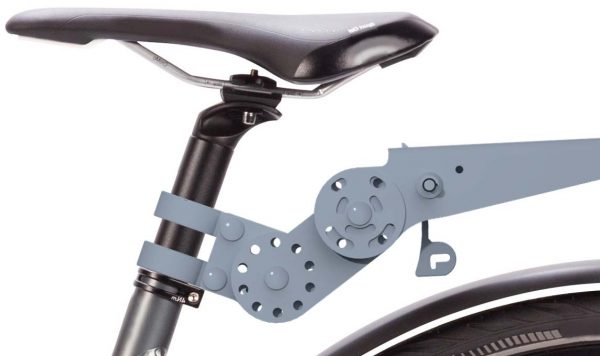

With an additional joint, the adjustable seat post holder offers the often necessary possibility to find the optimal position of Pullit! regarding bike frame and required saddle height.

  • Load capacity (seat post holder fix and adjustable): 10 kg
  • Seat post diameter : 25.4 mm (1 inch) or 27.2 mm (1 1/16 inch )

When do I absolutely need the adjustable seat post holder?

For small frame sizes and low saddles (see Graphic) the adjustable seat post holder must be used,
to be able to set the correct transport position over the rear wheel.

Seat post holder

The seat post holder takes over the transport of the Pullit! on bicycles without a luggage rack.
It is easily and securely attached to the seat post with two clamps.

Fix

In the Fix version, the incline of the holder can be adjusted and moved along the seat post.

Adjustable

With an additional joint, the adjustable seat post holder offers the often necessary possibility to find the optimal position of Pullit! regarding bike frame and required saddle height.

  • Load capacity (seat post holder fix and adjustable): 10 kg
  • Seat post diameter : 25.4 mm (1 inch) or 27.2 mm (1 1/16 inch )

When do I absolutely need the adjustable seat post holder?

For small frame sizes and low saddles (see Graphic) the adjustable seat post holder must be used,
to be able to set the correct transport position over the rear wheel.

Pullit!-Holder for luggage rack

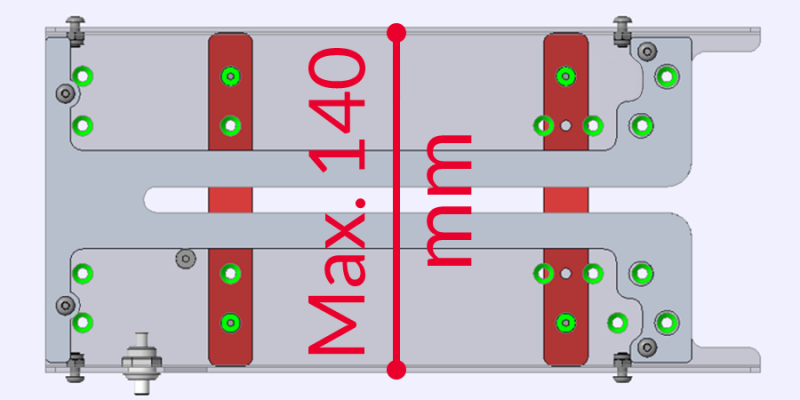

The Pullit!-Holder for luggage racks was designed so that it can be mounted on most standard luggage racks (max. Width 140mm)

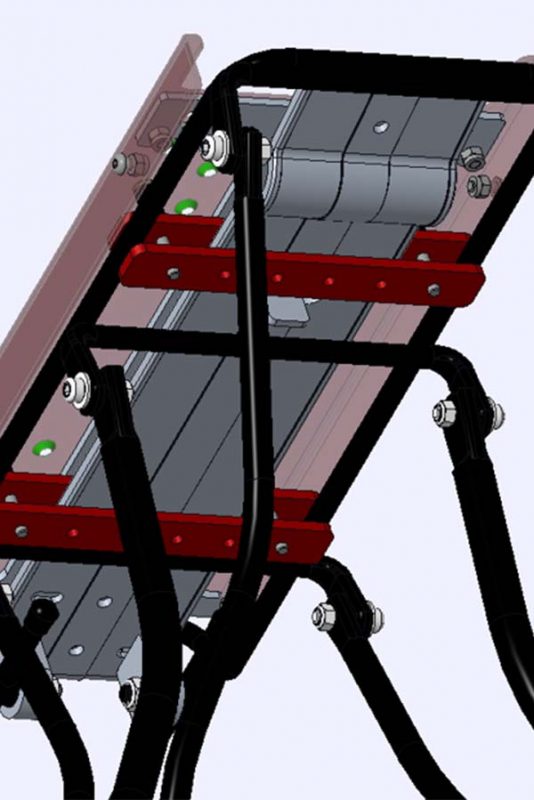

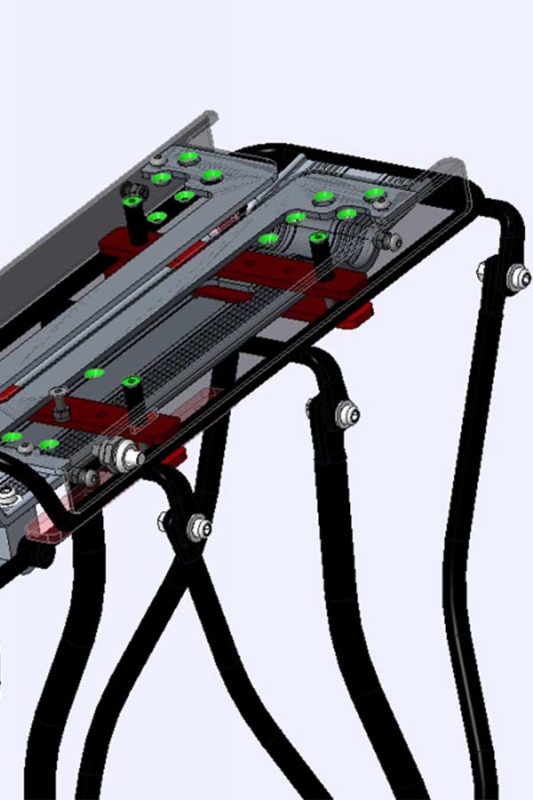

The mounting plates shown in red in the illustration clamp the top and bottom of the luggage carrier frame firmly and ensure a secure hold.

The mounting plates (red) can be attached in various positions (marked green) across. In addition, the complete holder can also be moved along the length of your luggage rack in order to find the optimal mounting positions.

Pullit!-Holder for luggage rack

The mounting plates (red) can be attached in various positions (marked green) across. In addition, the complete holder can also be moved along the length of your luggage rack in order to find the optimal mounting positions.

The Pullit!-Holder for luggage racks was designed so that it can be mounted on most standard luggage racks (max. Width 140mm)

The mounting plates shown in red in the illustration clamp the top and bottom of the luggage carrier frame firmly and ensure a secure hold.

Basket Rack

Do you love practical details and convenience?

With the Basket Rack you don't have to take down your bag, backpack and especially your bike basket every time you use the Pullit!.

You can also mount your bike basket permanently. The Pullit! finds its place underneath. It couldn't be more convenient.

The basket rack is screwed into the existing holes with four screws. The load capacity is 10kg.

Basket Rack

Do you love practical details and convenience?

With the Basket Rack you don't have to take down your bag, backpack and especially your bike basket every time you use the Pullit!.

You can also mount your bike basket permanently. The Pullit! finds its place underneath. It couldn't be more convenient.

The basket rack is screwed into the existing holes with four screws. The load capacity is 10kg.

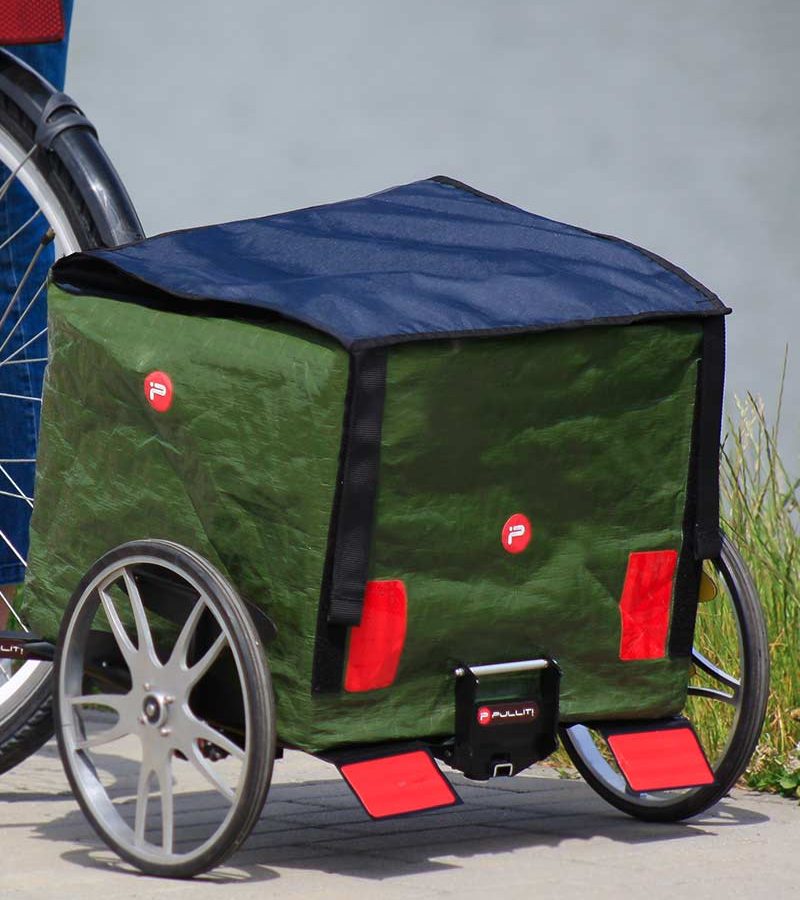

Bag & Bagbox

  • Bag dimensions (width x length x height): 42 cm x 42 cm x 45 cm Volume: 79 liters
  • Bagbox dimensions (unfolded, width x length): 42 cm x 42 cm (folded, width x length x height): 42 cm x 13 cm x 4.5 cm

Of course you can use any sturdy shopping bag, basket, crate or packaging with the Pullit! transport. Nevertheless, we have set ourselves the task of developing a bag that is especially tailored to the requirements and dimensions of the Pullit!. The result is a bag that is simple, extremely robust, washable and foldable to always be there - just like the Pullit! itself.

But sometimes even a bag needs a bag: the handy box, in which the bag disappears, can be stored on the Pullit! safely as it unfolds into a base that holds the Pullit! and protects the load during transport. In addition, the legally required reflectors are attached.

  • Bag dimensions (width x length x height): 42 cm x 42 cm x 45 cm
    Volume: 79 liters

Of course you can use any sturdy shopping bag, basket, crate or packaging with the Pullit! transport. Nevertheless, we have set ourselves the task of developing a bag that is especially tailored to the requirements and dimensions of the Pullit!. The result is a bag that is simple, extremely robust, washable and foldable to always be there - just like the Pullit! itself.

But sometimes even a bag needs a bag: the handy box, in which the bag disappears, can be stored on the Pullit! safely as it unfolds into a base that holds the Pullit! and protects the load during transport. In addition, the legally required reflectors are attached.

  • Bagbox dimensions (unfolded, width x length): 42 cm x 42 cm (folded, width x length x height): 42 cm x 13 cm x 4.5 cm

Reflector

Fasten the reflective strip either in the middle and horizontally to the rear load barrier, or in the middle and horizontally to the securing belt (s) on the back of the load with the Velcro strip.

The correct attachment of the reflector strip meets the legal requirements in most EU countries. Please inquire about the regulations that apply in your country.

  • Reflective strips with Velcro on the back: 25 cm x 5.7 cm

Fasten the reflective strip either in the middle and horizontally to the rear load barrier, or in the middle and horizontally to the securing belt (s) on the back of the load with the Velcro strip.

The correct attachment of the reflector strip meets the legal requirements in most EU countries. Please inquire about the regulations that apply in your country.

  • Reflective strips with Velcro on the back: 25 cm x 5.7 cm

Lock it!

For both Pullit! Versions, the following applies: The push lock is located on the front left of the holder and blocks the opening of the locking lever.

For both Pullit! Versions, the following applies: The push lock is located on the front left of the holder and blocks the opening of the locking lever.

Coupling

Our supplied standard hitch fits most bicycles and has a torque arm that prevents the hitch from twisting when braking and accelerating.

The coupling is always attached to the left of the rear wheel hub when viewed in the direction of travel.

To connect the Pullit!, the drawbar end of the Pullit! is inserted into the retaining pin of the coupling and locked from above by the pivotable locking lever.

Certain special types of bicycle frames and the rear wheel axle used on your bicycle can Require the use of an adapter.

To find out quickly and easily whether you need an adapter, we provide you with an Advisory PDF "Coupling assembly and adapter selection“ (link) to use.

If you are unsure, or have any questions, we will help you select the most suitable Coupling option for you . Contact us.

Note on rear stand:

The Pullit! is a light bike trailer with a low center of gravity to ensure the best driving characteristics. The coupling point is therefore approx. 90 mm below the rear wheel axle. In this case, bicycles with rear stands can collide with the drawbar. We therefore recommend using bike stand that is mounted in the middle of the bike (behind the bottom bracket).

Coupling

Our supplied standard hitch fits most bicycles and has a torque arm that prevents the hitch from twisting when braking and accelerating.

The coupling is always attached to the left of the rear wheel hub when viewed in the direction of travel.

To connect the Pullit!, the drawbar end of the Pullit! is inserted into the retaining pin of the coupling and locked from above by the pivotable locking lever.

Certain special types of bicycle frames and the rear wheel axle used on your bicycle can Require the use of an adapter.

To find out quickly and easily whether you need an adapter, we provide you with an Advisory PDF "Coupling assembly and adapter selection“ (link) to use.

If you are unsure, or have any questions, we will help you select the most suitable Coupling option for you . Contact us.

Note on rear stand:

The Pullit! is a light bike trailer with a low center of gravity to ensure the best driving characteristics. The coupling point is therefore approx. 90 mm below the rear wheel axle. In this case, bicycles with rear stands can collide with the drawbar. We therefore recommend using bike stand that is mounted in the middle of the bike (behind the bottom bracket).

Color

Although the Pullit! and its frame components are made of aluminum or stainless steel and therefore do not need to be protected against corrosion, these components are coated with black powder paint in order to give a uniform aesthetic overall impression.

Your individual color choice refers to the covers that form the loading area and the side borders. Monomer foils, which you know as graphic foils for floors from the advertising industry, are glued to the surfaces already coated with powder coating. These colored stickers are extremely robust and durable.

We work with professional graphic films and the corresponding color selection from Avery Dennison®. As the foils are provided with a robust and slip-resistant laminate, all foils are only available in matt gloss.

Due to the large number of different colors, we offer selected standard colors. Other colors are available at an additional cost.

There is the possibility to design your Pullit! in a unique way (e.g. with a motif film). Just get in touch with us.

In case you would like to “redesign” your Pullit! at some point, we offer separately available sticker sets.

Color

Although the Pullit! and its frame components are made of aluminum or stainless steel and therefore do not need to be protected against corrosion, these components are coated with black powder paint in order to give a uniform aesthetic overall impression.

Your individual color choice refers to the covers that form the loading area and the side borders. Monomer foils, which you know as graphic foils for floors from the advertising industry, are glued to the surfaces already coated with powder coating. These colored stickers are extremely robust and durable.

We work with professional graphic films and the corresponding color selection from Avery Dennison®. As the foils are provided with a robust and slip-resistant laminate, all foils are only available in matt gloss.

Due to the large number of different colors, we offer selected standard colors. Other colors are available at an additional cost.

There is the possibility to design your Pullit! in a unique way (e.g. with a motif film). Just get in touch with us.

In case you would like to “redesign” your Pullit! at some point, we offer separately available sticker sets.
