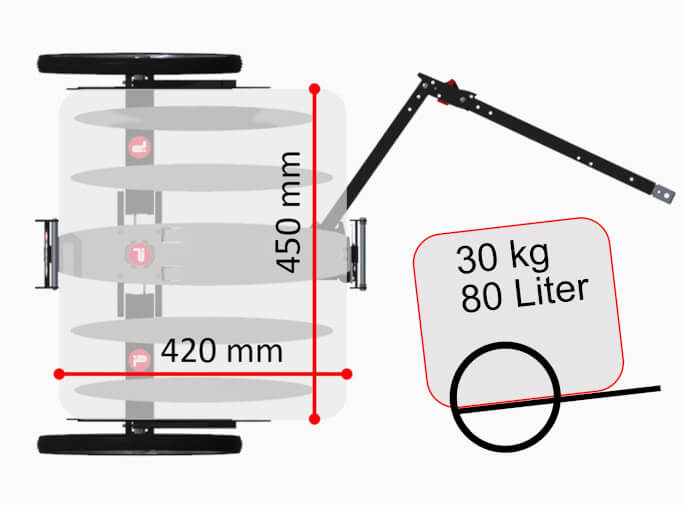

Technical specifications
- Weight: app. 5.4 kg (12 lbs)
- Payload: 30 kg (66 lbs)
- Cargo area: (Width x Lenght) 45 cm x 42 cm (17.7" x 16.5")
- Trailer width (unfolded): 60 cm (23.6")
Equipment
Coupling
Standard option
There are three different couplings to choose from as standard, which securely connect the Pullit! to almost all traditional or modern bicycles and pedelecs.

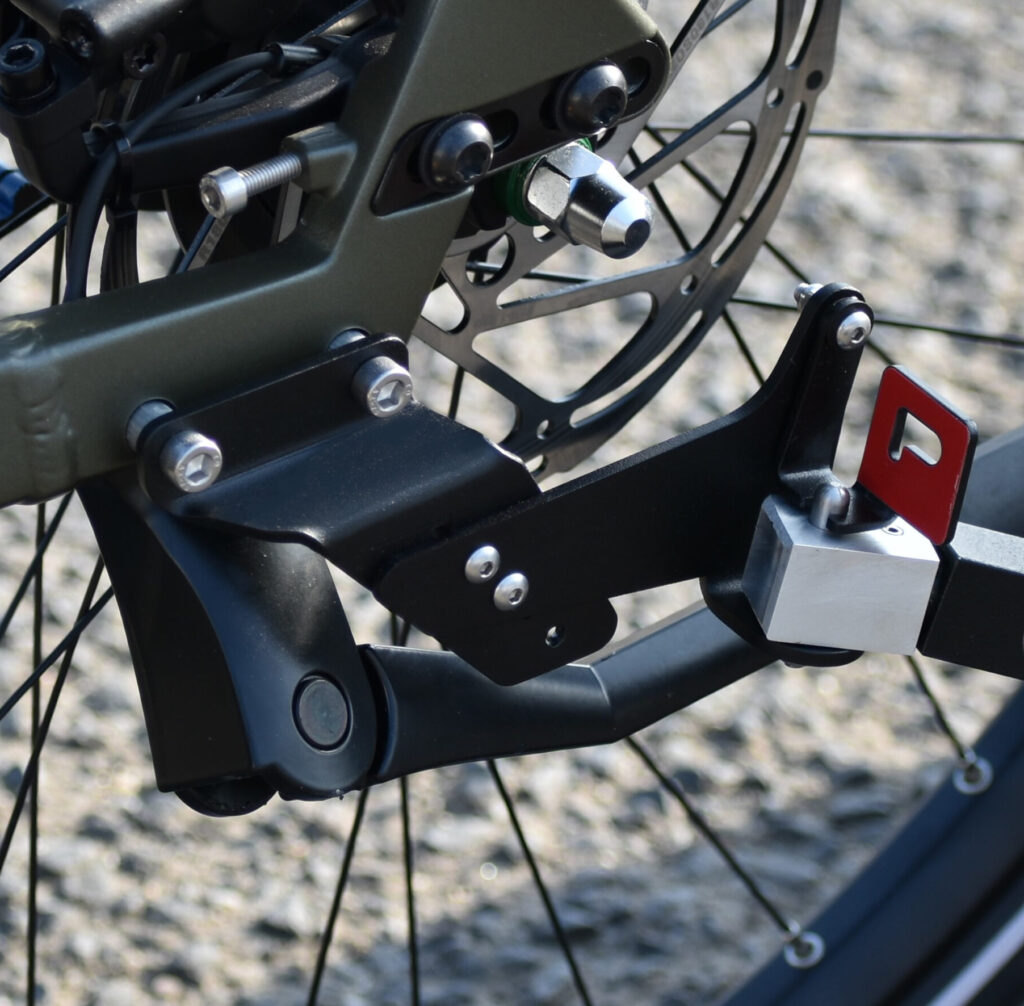

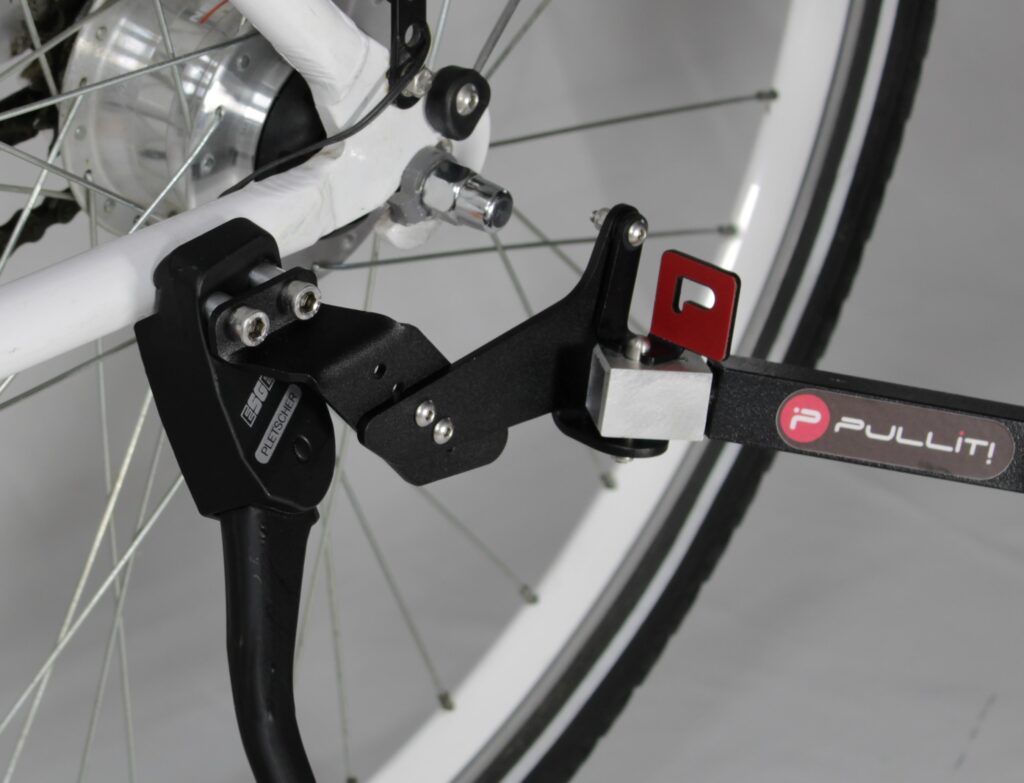

Coupling for mounting on KSA 18 or KSA 40 rear bike stands
Almost all modern bicycles and pedelecs have a rear stand that is mounted near the rear wheel hub. The coupling versions KSA 18 (small image) or KSA 40 (large image) are bolted to the frame together with the rear stand.

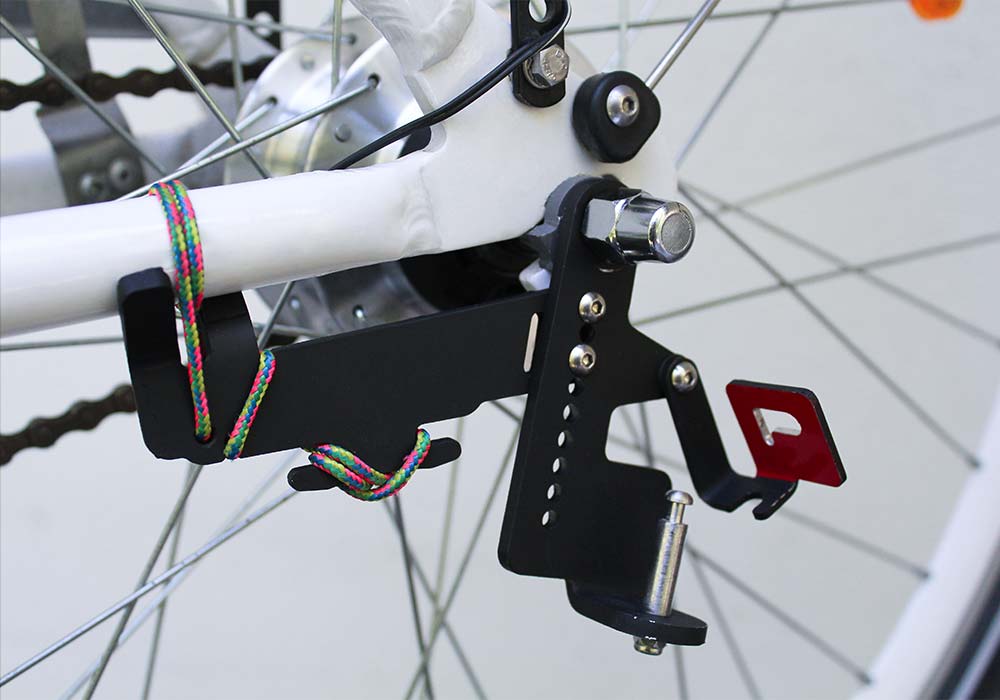

Coupling for hub axle
The axle coupling is intended for conventional bicycles that do not have a rear stand that can be bolted to the lower frame strut. The axle coupling is mounted on the axle of the rear wheel hub and has a torque arm that prevents the coupling from twisting when braking and accelerating (see image).
Certain special forms of the bicycle frame and the rear wheel axle used on your bicycle may require the use of an adapter. To find out easily and quickly whether you need an adapter, we provide you here with our guide "Coupling installation and adapter selection" .
If you have any questions or are unsure, we will of course select the right coupling option for you. Contact us.

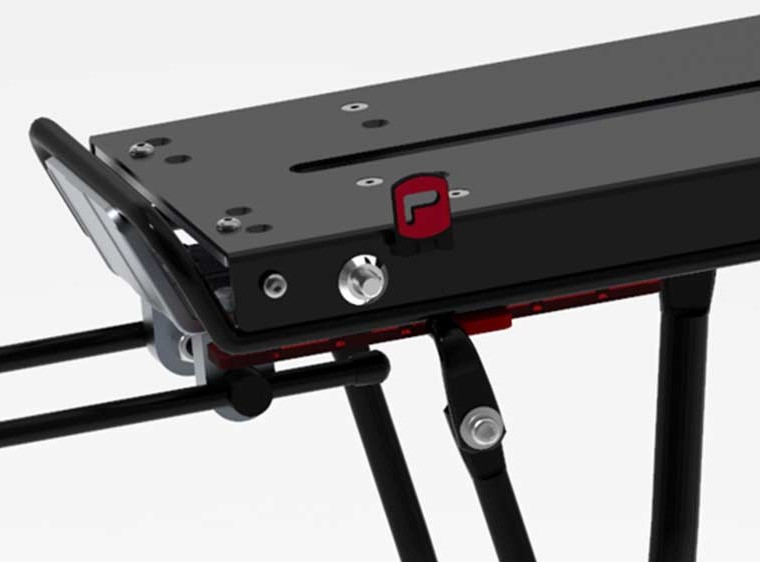

Holder for luggage rack
Standard option

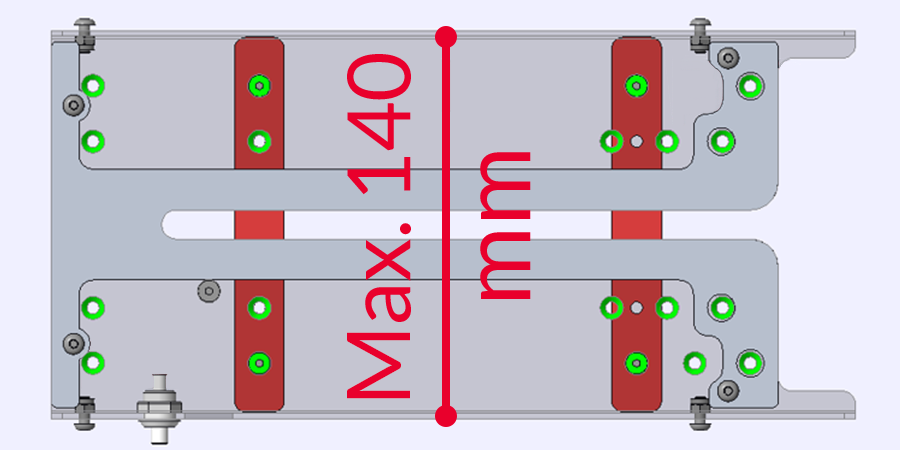

The Pullit!-Holder for luggage racks was designed so that it can be mounted on most standard luggage racks
(max. Width 140 mm/5.5 in).

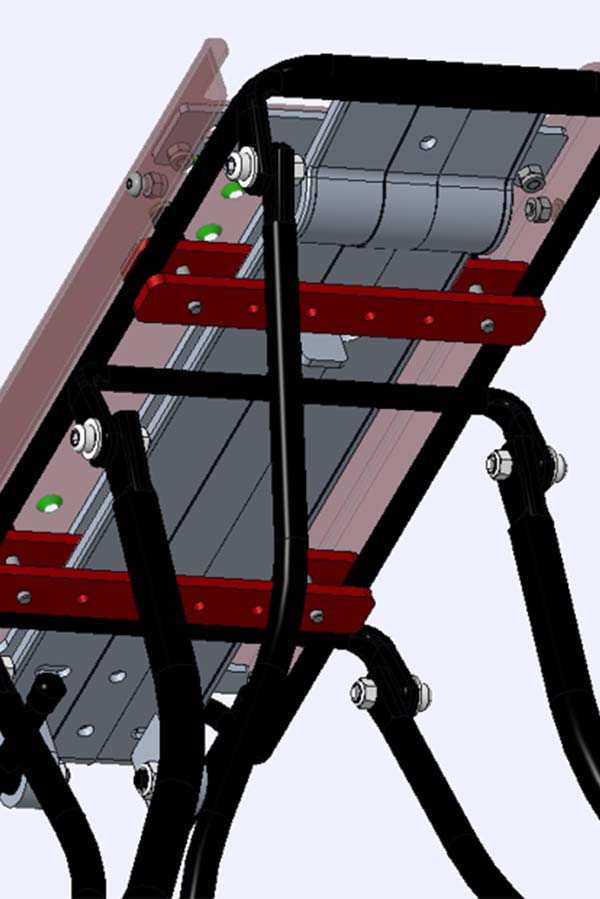

The mounting plates shown in red in the illustration clamp the top and bottom of the luggage carrier frame firmly and ensure a secure hold.
The mounting plates (red) can be attached in various positions (marked green) across. In addition, the complete holder can also be moved along the length of your luggage rack in order to find the optimal mounting positions.

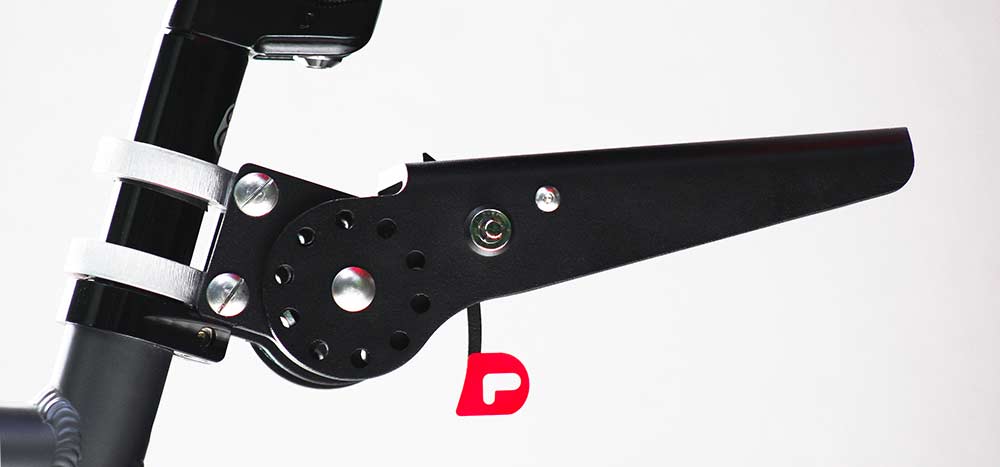

Seat post holder
Standard option

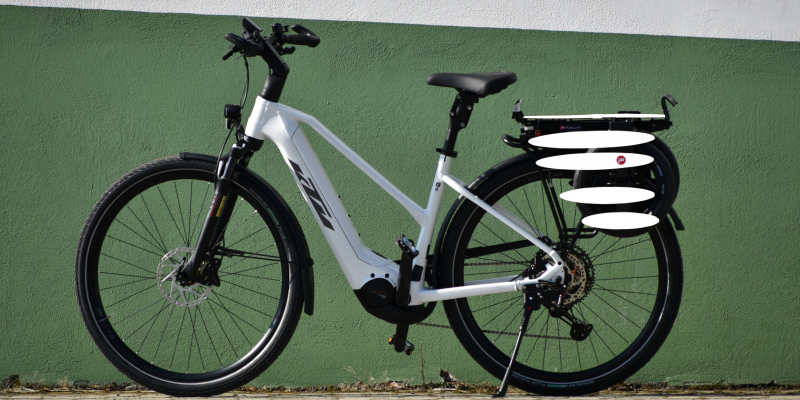

The seat post holder takes over the transport of the Pullit! on bicycles without a luggage rack.
It is easily and securely attached to the seat post with two clamps.
Fix - standard option
Adjustable - optional

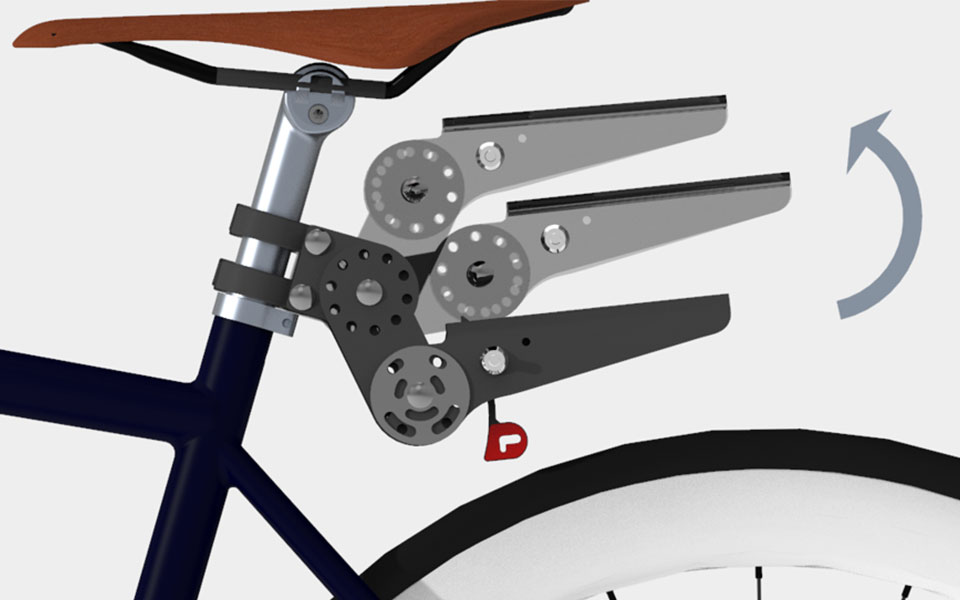

In the Fix version, the incline of the holder can be adjusted and moved along the seat post.

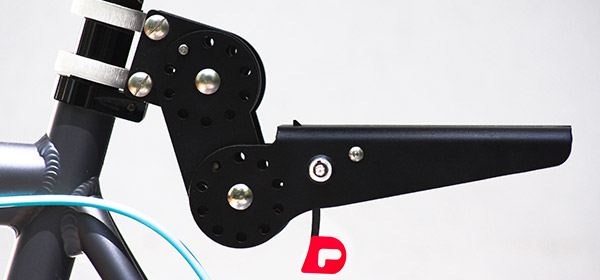

With an additional joint, the adjustable seat post holder offers the often necessary possibility to find the optimal position of Pullit! regarding bike frame and required saddle height.
The adjustable seat post holder offers the great advantage of finding the optimal position for each frame.
Load capacity (seat post holder fix and adjustable): 10 kg/ 22 lbs
When do I absolutely need the adjustable seat post holder?

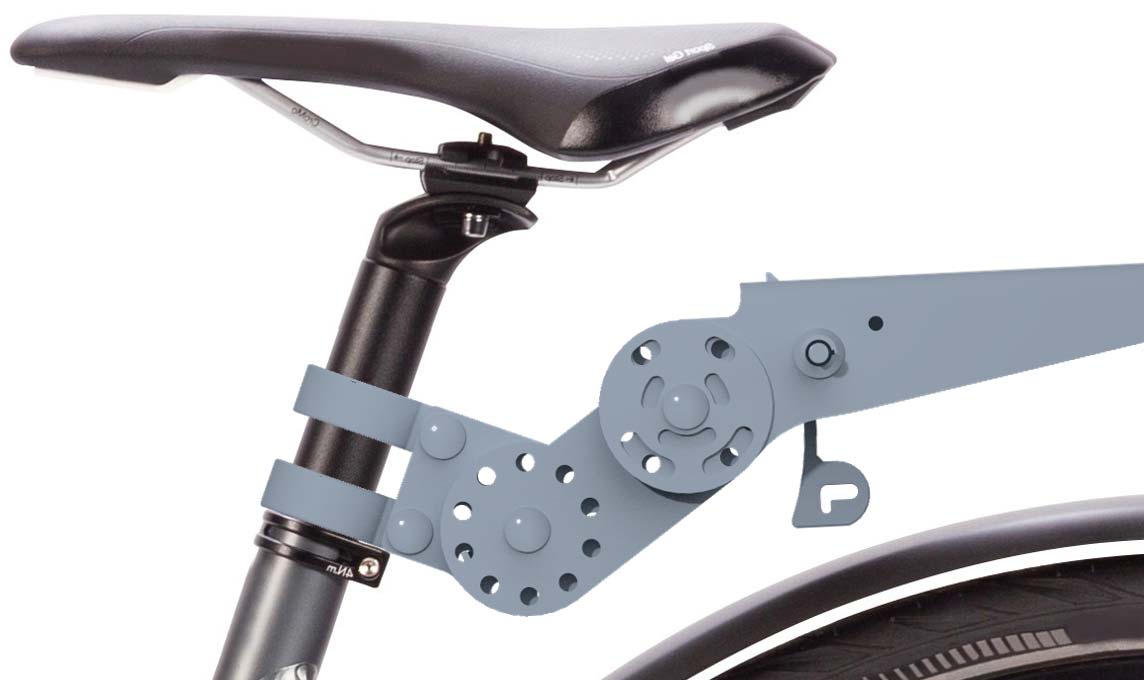

For small frame sizes and low saddles (see image) the adjustable seat post holder must be used,
to be able to set the correct transport position over the rear wheel.
Seat post holder
Standard option
The seat post holder takes over the transport of the Pullit! on bicycles without a luggage rack.
It is easily and securely attached to the seat post with two clamps.
Fix - standard option
In the Fix version, the incline of the holder can be adjusted and moved along the seat post.

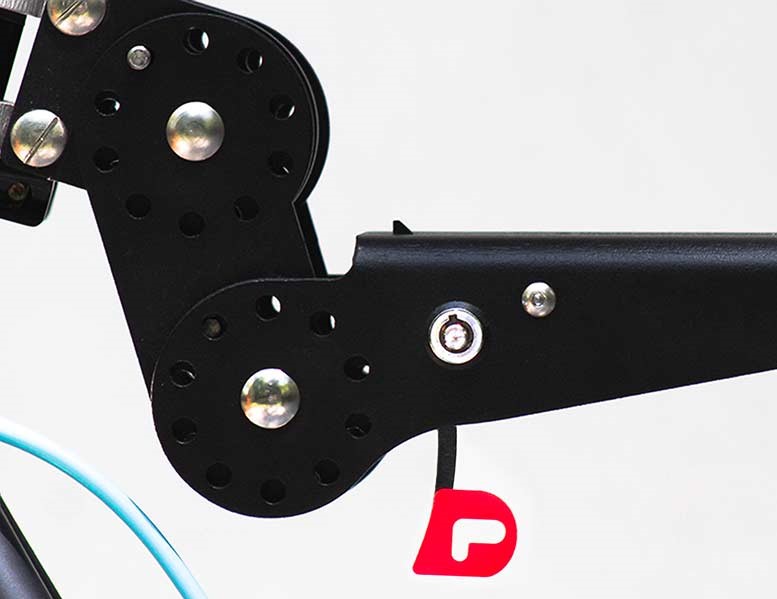

Adjustable - optional
With an additional joint, the adjustable seat post holder offers the often necessary possibility to find the optimal position of Pullit! regarding bike frame and required saddle height.
The adjustable seat post holder offers the great advantage of finding the optimal position for each frame.
Tragkraft
Sattelstützenhalter fix und einstellbar:
10 kg
When do I absolutely need the adjustable seat post holder?
For small frame sizes and low saddles (see image) the adjustable seat post holder must be used,
to be able to set the correct transport position over the rear wheel.
Options

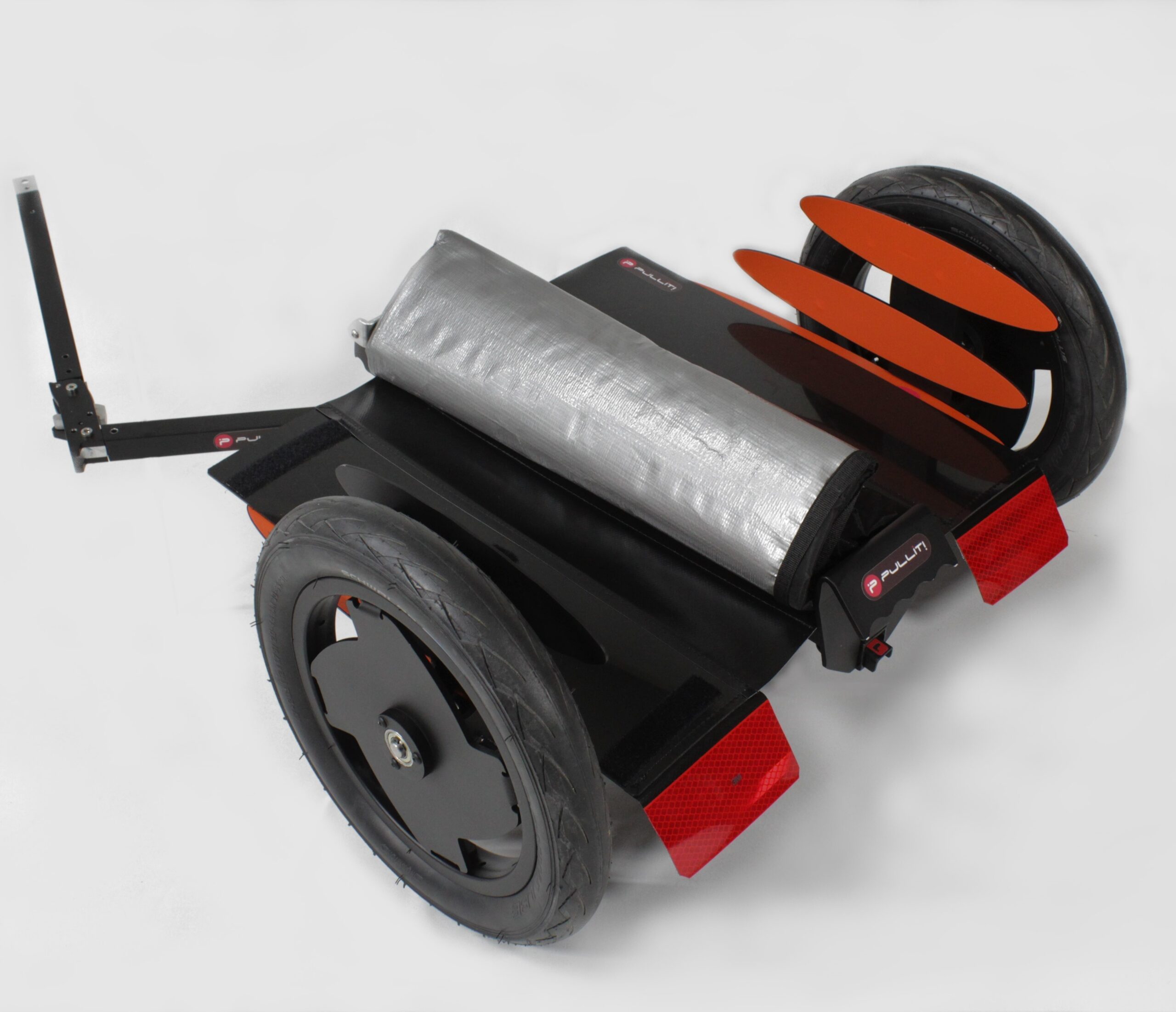

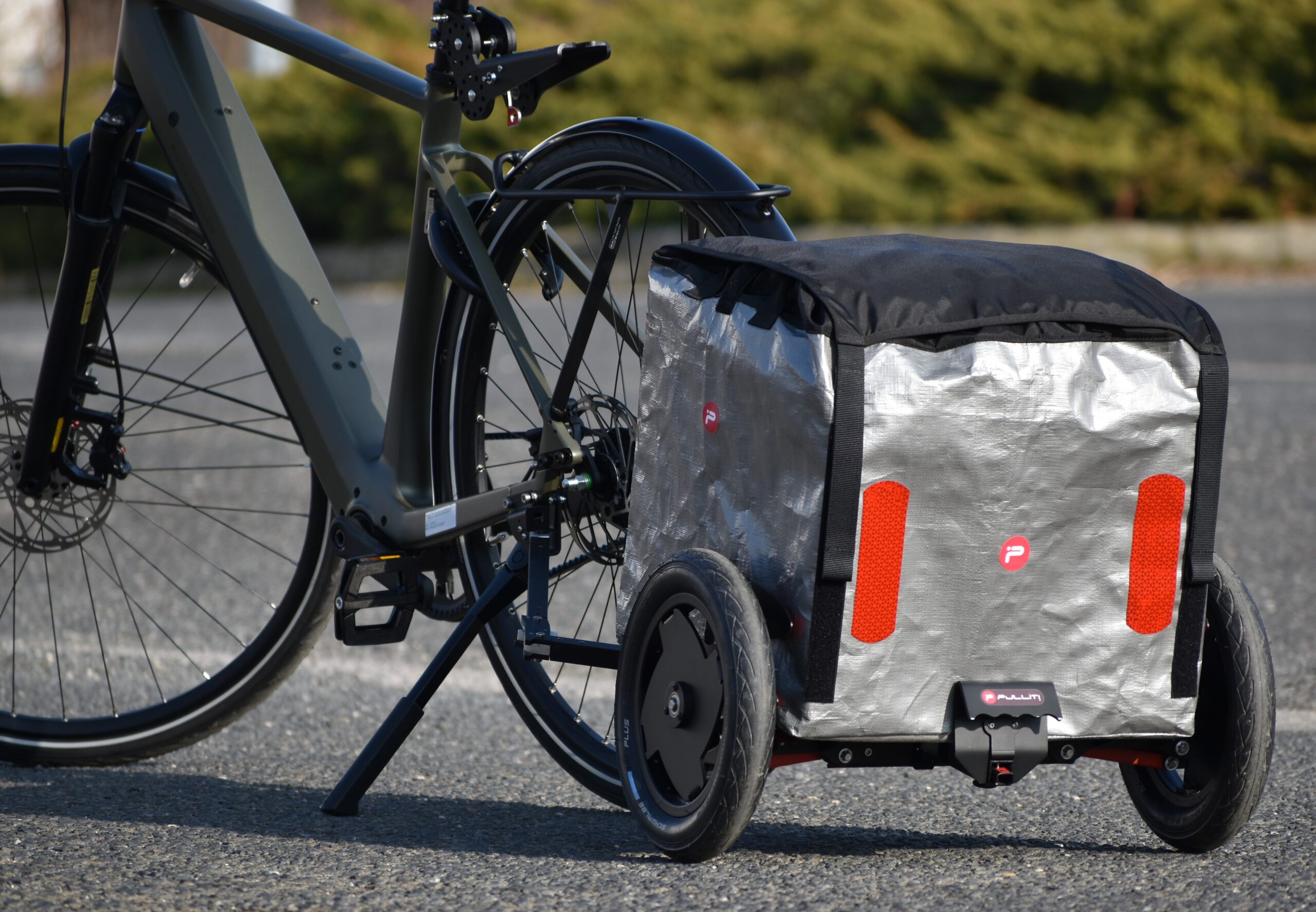

Bag and protective cover
Optional
Dimensions bag
Width x Length x Height:
42 cm x 42 cm x 45 cm
16.5" x 16.5" x 17.7"
Volume: 79 Liter / 21 gal
Of course you can transport any sturdy shopping bag, basket, crate or packaging with the Pullit!. We offer you a bag that is specially tailored to the requirements and dimensions of the Pullit!.
This bag is simple, extremely robust, washable and foldable - to always be there - like the Pullit!.

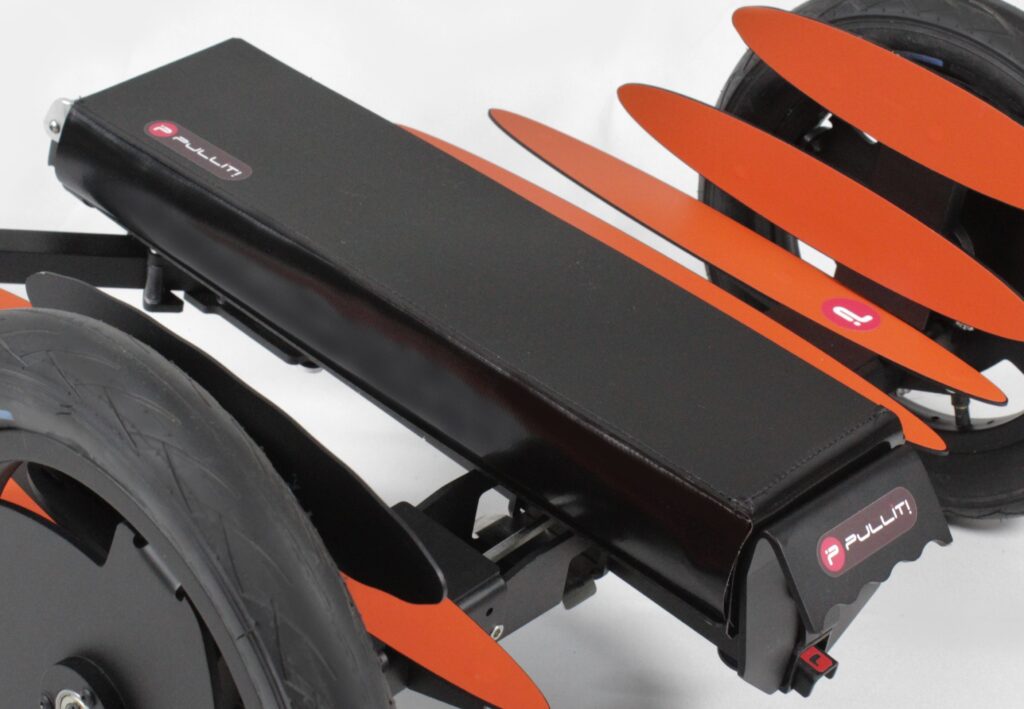

But even a bag needs a bag: the bag disappears into the folded protective cover and becomes a handy box that is safely stowed on the Pullit!. The cover protects the Pullit! and is equipped with reflectors for more safety.

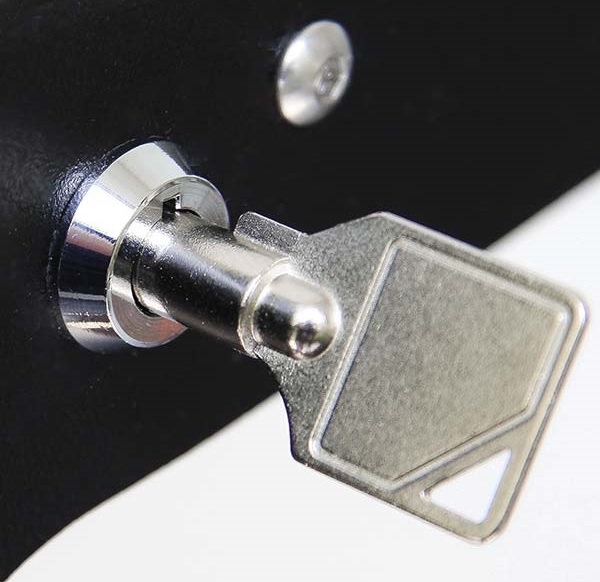

Lock
Optional
The push lock is located on the front left of the holder and blocks the opening of the locking lever.

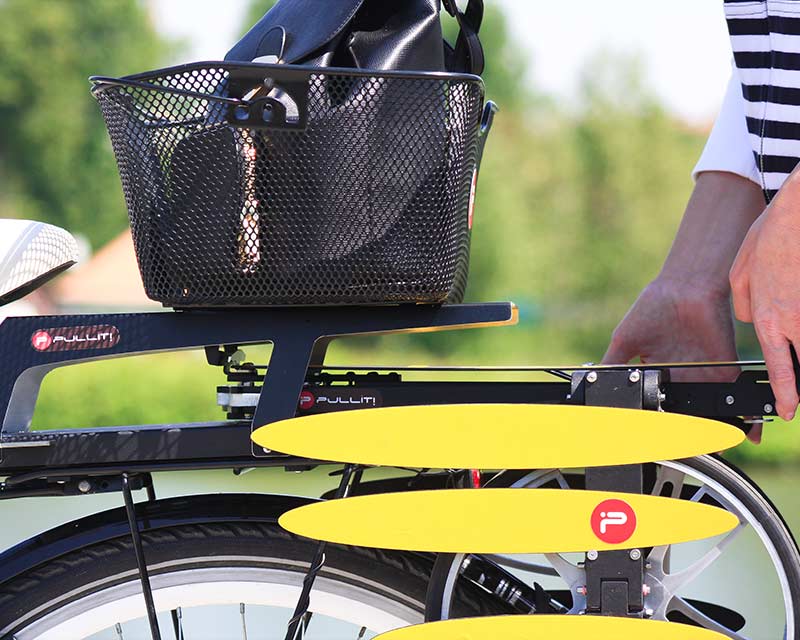

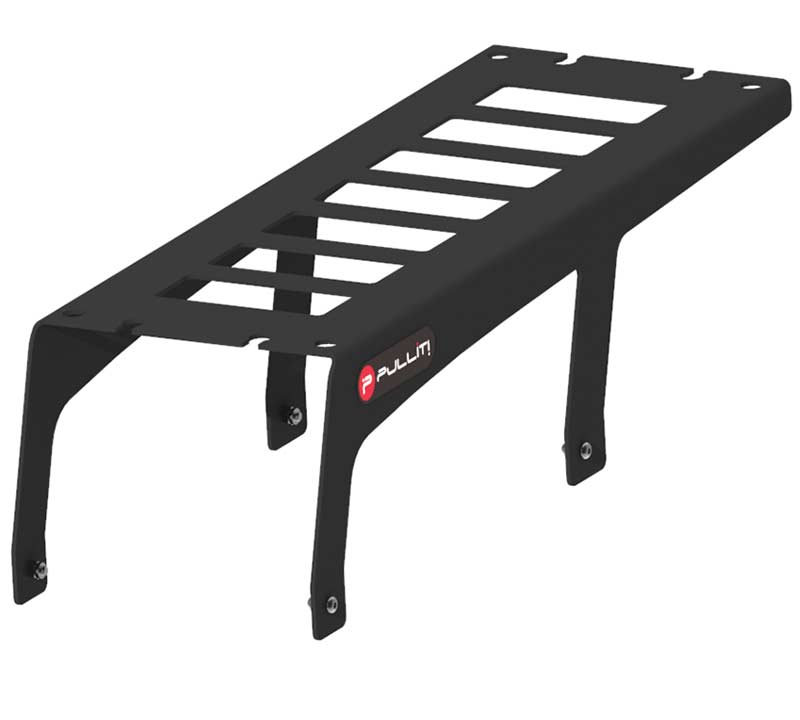

Basket rack
Can only be mounted on luggage rack holder
Optional
Do you love practical details and convenience?
With the Basket Rack you don't have to take down your bag, backpack and especially your bike basket every time you use the Pullit!.
You can also mount your bike basket permanently. The Pullit! finds its place underneath. It couldn't be more convenient.
The basket rack is screwed into the existing holes in the rack holder with four screws. The load capacity is 10kg.

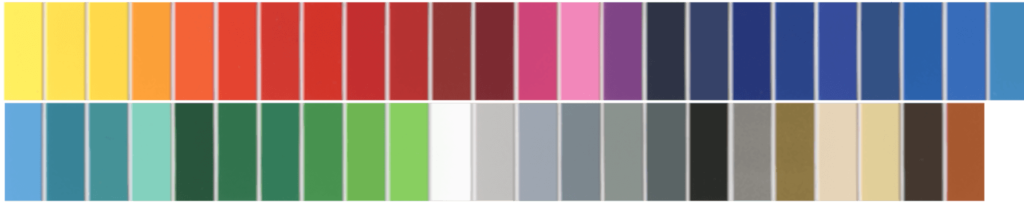

Choose your color
Standard colors as standard, others optional (see shop)
Previous
Next
Previous
Next
Previous
Next
Previous
Next
Although the Pullit! and its frame components are made of aluminum or stainless steel and therefore do not need to be protected against corrosion, these components are coated with black powder paint in order to give them a uniform aesthetic overall impression.
Your individual choice of color refers to the covers that form the loading area and side borders. Laminated monomer foils, which you know from the advertising industry as graphic foils for floors, are glued to the surfaces that have already been coated with powder paint. These colored stickers are extremely robust and durable.
We work with professional graphic films and the corresponding color selection from Avery Dennison®. As the foils are provided with a robust and slip-resistant laminate, all foils are only available in matt gloss.
Due to the large number of different colors, we offer selected standard colors. Other colors are available at an additional cost.
There is the possibility to design your Pullit! in a unique way (e.g. with a motif film). Just get in touch with us.
In case you would like to “redesign” your Pullit! at some point, we offer separately available sticker sets.

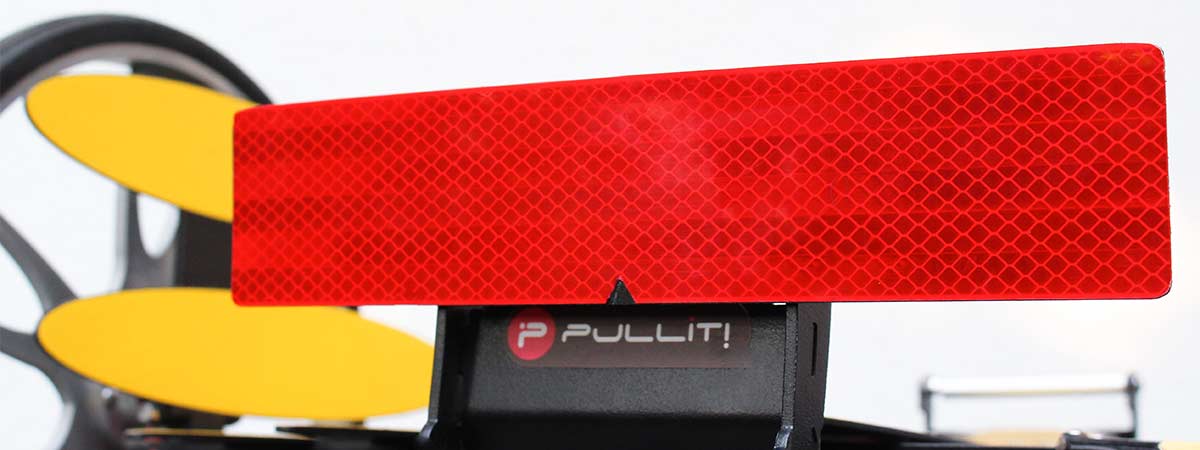

Reflector
Optional
Fasten the reflective strip either in the middle and horizontally to the rear load barrier, or in the middle and horizontally to the securing belt (s) on the back of the load with the Velcro strip.
The correct attachment of the reflector strip meets the legal requirements in most EU countries. Please inquire about the regulations that apply in your country.
